HYDRANT DRAIN METER

Hydrant Drain Meter HYD-10 is used to detect draining levels of hydrants in order to

prevent them from freezing in winter months.  Hydrants in areas where temperatures

are consistently below freezing,  have a higher tendency to freeze.  These hydrants are

dry barrel type, where the water should not remain in the barrel after use.  Hydrants

that have water in the barrels after use need to be pumped out to avoid freezing in

the winter.  The reasons for water remaining in the barrel could be, a leaking main

valve,  clogged drain plugs or high-water table.  Monitoring these hydrants with the

Hydrant Drain Meter HYD-10,  allows cities and municipalities to avoid safety issues

of non-functioning hydrants due to freezing.

The Hydrant Drain Meter HYD-10 can measure the depth of water in the hydrants

barrel if any. The meter comprises of a metal probe fitted to a flexible twisted

color-coded cable which is wound on to a portable hand reel containing an

electronic switched circuit, visual indicators and batteries.

The Hydrant Drain Meter is simple to use and is portable which allows it to be used

easily at many locations.  The twisted color-coded cable allows the probe to be easily

dropped inside the hydrants port cap and removed without any resistance.  The

Color-coded wires allow the user to quickly identify the depth without needed to

reference the foot measurements.

The Hydrant Drain Meter HYD-10 has a 10 foot measuring depth and comes with

pre-installed (2) 9 Volt batteries and a carry bag.

- Flexible cable for easy winding and unwinding, even in

        cold temperatures

- Waterproof design

- Color coded wire fast depth measurements

- Strong 80lb base magnet allows it be placed at any angle

         and location on hydrant

- 3 bright LED signals, that can be view at any angle even

         in bright sunlight up to 20 ft

- (2) 9 volt batteries power the tool providing maximum

         usage between battery changes

- Can identify water drainage rate by simple calculation

- Ergonomically designed for ease of use

- Probe can quickly and easily be attached to magnetic while

        not in use or can hang from handle prior to use

- Magnetic base allows it to be fastened on metal panel of

        work van or any metal surface for quick and easy access

- Identifies hydrants that are not fully drained and need to

        be pumped out to prevent freezing in winter months

- On/ Off switch conserves battery life

The Hydrant Drain Meter is used to measure the standing water level inside a

dry barrel hydrant.  The Hydrant Drain Meter can be used at any angle and can

be easily attached to any hydrant using the magnetic base.

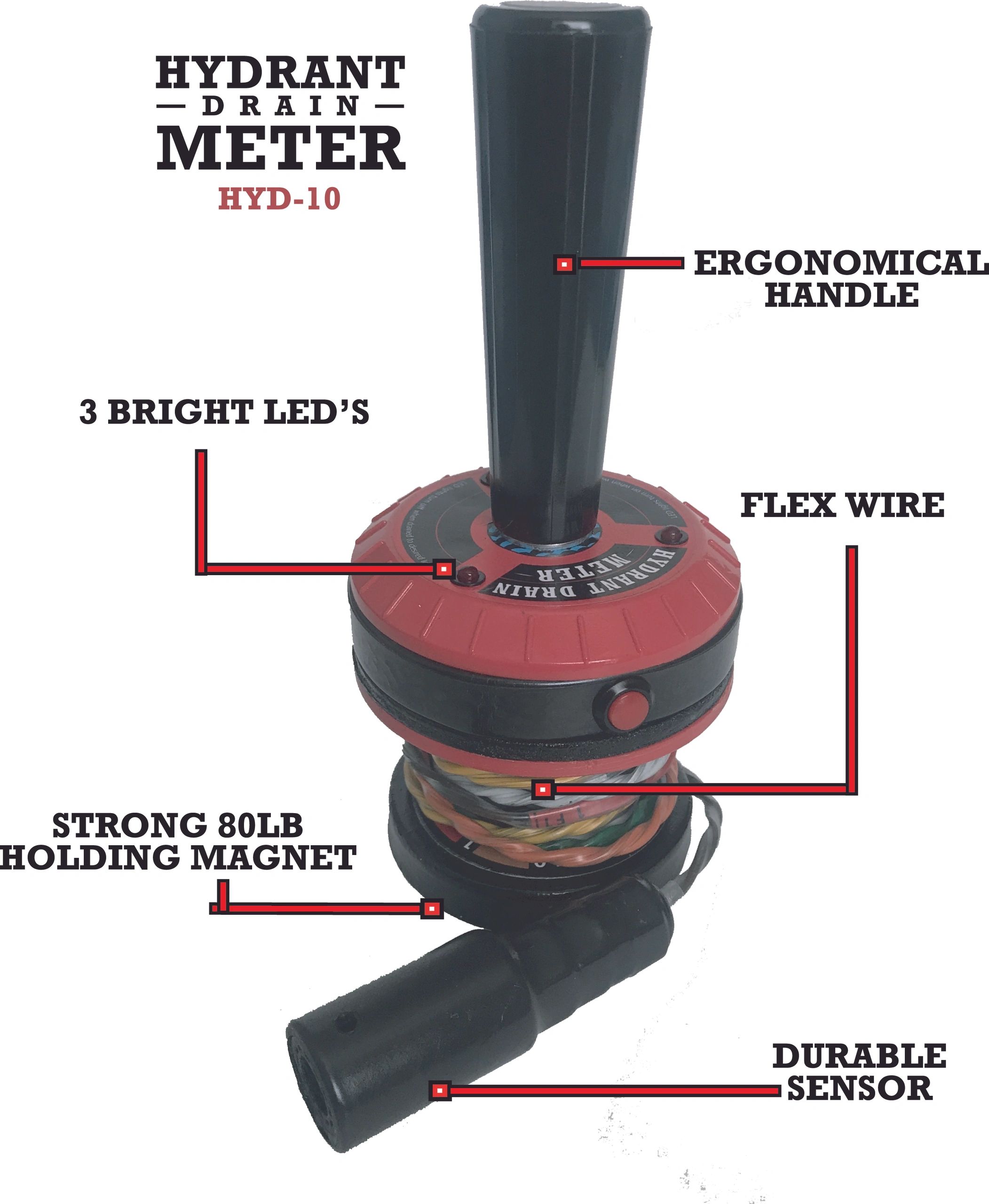

Each Hydrant Drain meter is comprised of a metal probe fitted to a flexible cable wire

that is wound on to a hand-held reel with an ergonomical handle.  The cable is

connected to an electronic circuit, 3 LED (light) signal indicator and (2) 9 volt

batteries and an On / Off switch.

The sensor probe incorporates an insulated gap which acts as a switch, the circuit

being completed when contact is made with the water.

The cable consists of a non-stretch twisted color-coded wire with copper

conductors, also marked in one foot intervals.

The Probe is lowered down the port of a hydrants barrel to be tested.  When

it makes contact with water,  the 3 LED’s come on,  located at the top of the tool.

A reading can then be taken from the measuring cable at the port level to

record the depth.

The probe can also be left in the barrel at the desired drain depth.  When

draining to this depth is complete, the LED’s will turn off which indicates

that no water is left standing at this level of the barrel.

Drain test after Hydrant use:

- Turn on unit, by pressing in button

- Place sensor probe through hydrant port and lower do desired drain

         depth as required

- Use color code of wire to quickly identify depth to leave sensor

- Once water level is drained at this level,  the LED lights turn off

- Unit can be turned off when drain test is complete, by depressing button

Drain test Before Hydrant use/ Check for Frozen hydrant:

- Turn on unit, by press button

- Place sensor probe through Hydrant port and lower slowly

-      Lights will turn on when water is detected (hydrant was not fully drained)

- Note the Depth by the color-coded wire

- If hydrant frozen - depth can be identified (LED lights will not turn on if frozen)

- Unit can be turned off when drain test is complete, by depressing button

Measuring the depth to the closest ½”

- Use the cap‘s ½” notched  lines as a guide

- Place the  wire along rubber sides and count notches

- Example:  2 notches equal 1”  - 6 notch’s equal 3”

- Also, the distance between LED’s along rubber sides is 4” (8 notches)

Weight:

  1060 gm

Dimensions:

   (LxWXH) 208mm X95mm X95mm

Measuring tape lengths:

 10 feet

Measuring Accuracy:

 1/2"

Coded wire:

 Colored every foot and one-foot incremental marks

Power Supply:

 2 x 9 Volt Batteries (included)

Measuring Cacle/Wire:

 Dual layer PVC twisted copper

Probe Dimensions:

 (LxWXH) 28mm x 28mm x 100mm

Button:

 On/ Off Button

Visual Indicators:

 3 LED's

Magnetic Base:

 80 lb Holding Capacity

Operating Envirnoment:

 Rated for outdoor use and is Water-proof

Battery Life:

  20 hours continuousy detecting

  1 year on, but not detecting

Operating Tempurature:

 -18°C to 55°C (0°F to 130°F)

     [can be used periodically at lower tempuratures, if stored in warmer environment when not in use]

Response time:

 <100 milliseconds

Accesories:

   Carry Bag

No Signal when unit is turned on and probe is in water.

- The battery is discharged. Check the battery.

          (Section 5: Battery Replacement)

- The circuit is malfunctioning.  Contact H2O Tools.

No Indication of water.

- The conductive probe contacts are dirty,  clean the contact.

        (section 5: Cleaning the conductive contact)

- There is an open connection in the cable.  Replace the cable

         and or the probe.

- The circuit is malfunctioning.  Contact H2O Tool.s

The signal LED’s are intermittent.

- There is an open connection in the cable.  Replace the cable

         or probe.

- There is a loose connection in the circuit or the probe.

           Repair the connection.

The signal LED’s are continuously.

- The Conductive contact is dirty (causing bridging).

         Clean the contacts. (section 5: Cleaning the conductive contact)

- There is a short in the cable or probe.  Replace the cable or probe.

- The circuit is malfunctioning.  Contact H2O Tools.

The signal LED’s stay dim after probe is withdrawn from water.

- When using the unit in areas of hard water, the LED’s may

        continue to respond after the probe is withdrawn from the

        water.   When this happens, the LED’s will stay on faintly

        and not on full brightness.  Dry out the probe contacts or

        blow out the electrode.

Warranty

For a period of one (1) year from date of first sale, product is warranted to be

free from defects in materials and workmanship. H2O Tools agrees to repair or

replace, at H2O Tools option, the portion proving defective, or at our option to

refund the purchase price thereof.  H2O Tools will have no warranty obligation

if the product is subjected to abnormal operating conditions, accident, abuse,

misuse, unauthorized modification, alteration, repair, or replacement of wear

parts. User assumes all other risk, if any, including the risk of injury, loss, or

damage, direct or consequential, arising out of the use, misuse, or inability to

use this product. User agrees to use, maintain and install product in accordance

with recommendations and instructions. User is responsible for transportation

charges connected to the repair or replacement of product under this warranty

Equipment Return Policy

Equipment Return Policy A Return Material Authorization number (RMA #) is

required prior to return of any equipment to our facilities, please email us.

An RMA # will be issued upon receipt of your request to return equipment,

which should include reasons for the return. Your return shipment to us must

have this RMA # clearly marked on the outside of the package. Proof of date of

purchase is required for processing of all warranty requests. This policy applies

to both equipment sales and repair orders.

FOR A RETURN MATERIAL AUTHORIZATION, PLEASE EMAIL US

at H2OToolsCanada@gmail.com.

Model Number: ________________

Serial Number: ________________

Date of Purchase: __________________

Serial Number

The serial number for each tool is located inside cap near the batteries.

(see Figure 3 , Page 8)

Equipment Decontamination

Prior to return, all equipment must be thoroughly cleaned and decontaminated.

Please make note on RMA form, the use of equipment, contaminants equipment

was exposed to, and decontamination solutions/methods used. H2O Tools

reserves the right to refuse any equipment not properly decontaminated.

H2O Tools may also choose to decontaminate the equipment for a fee,

which will be applied to the repair order invoice.
